Product Description

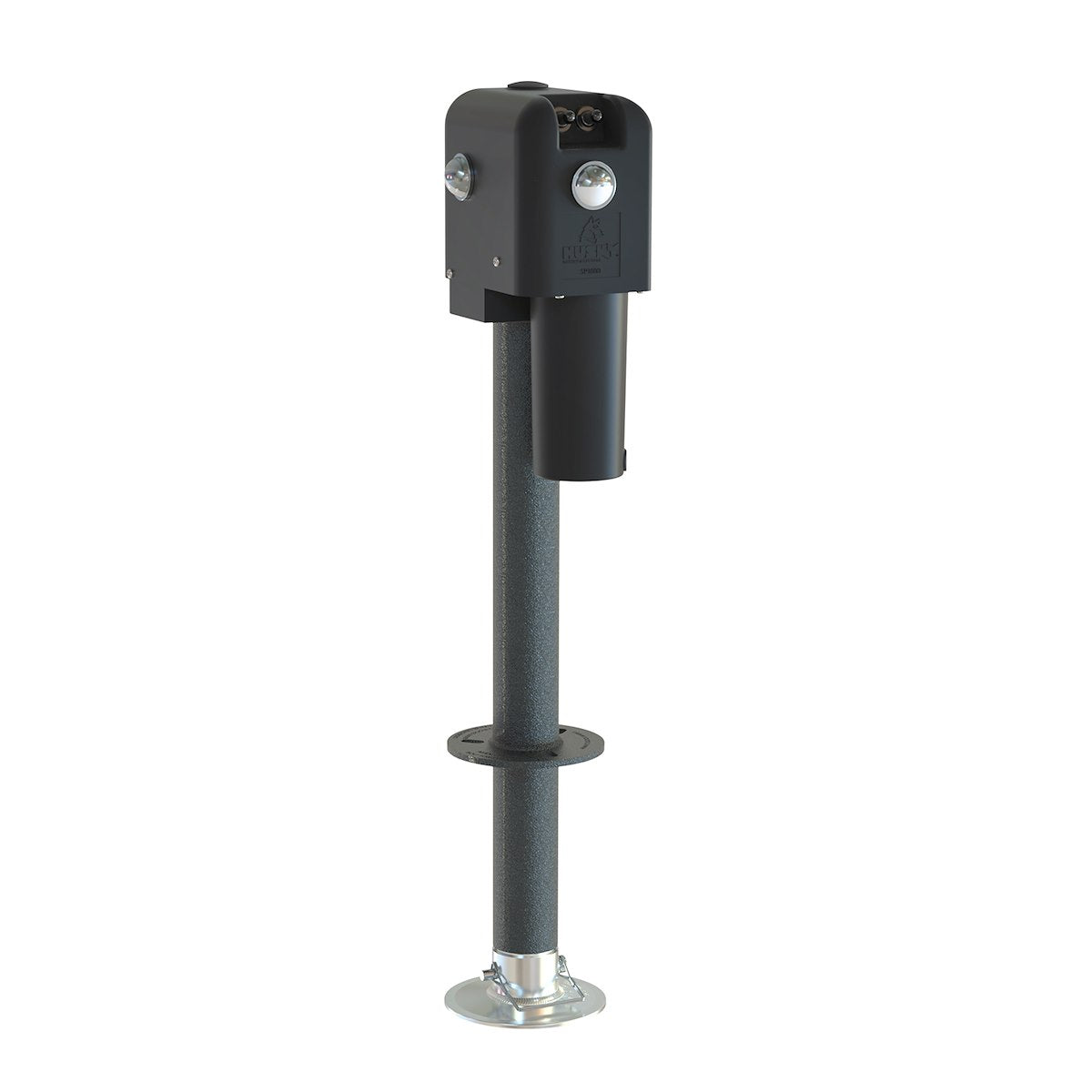

The Husky 81200 is a 12-volt electric tongue jack for A-frame trailers, rated for 3,000 lbs. It bolts onto the trailer's A-frame tongue and raises and lowers the trailer at the push of a button, making hitching and unhitching much easier than cranking by hand. It's a common upgrade for travel trailers and pop-ups.
The jack uses a 3/4-inch high-strength ACME drive screw, hardened steel gears and a self-lubricating drive nut, with internal automatic thermal protection and a resettable circuit breaker. Smart Stop technology helps prevent hard stops at the ends of travel. Three multi-bulb work lights help at night, and weather-protected switches let you run the lights and jack separately. An emergency crank handle is included for manual operation if power is lost.

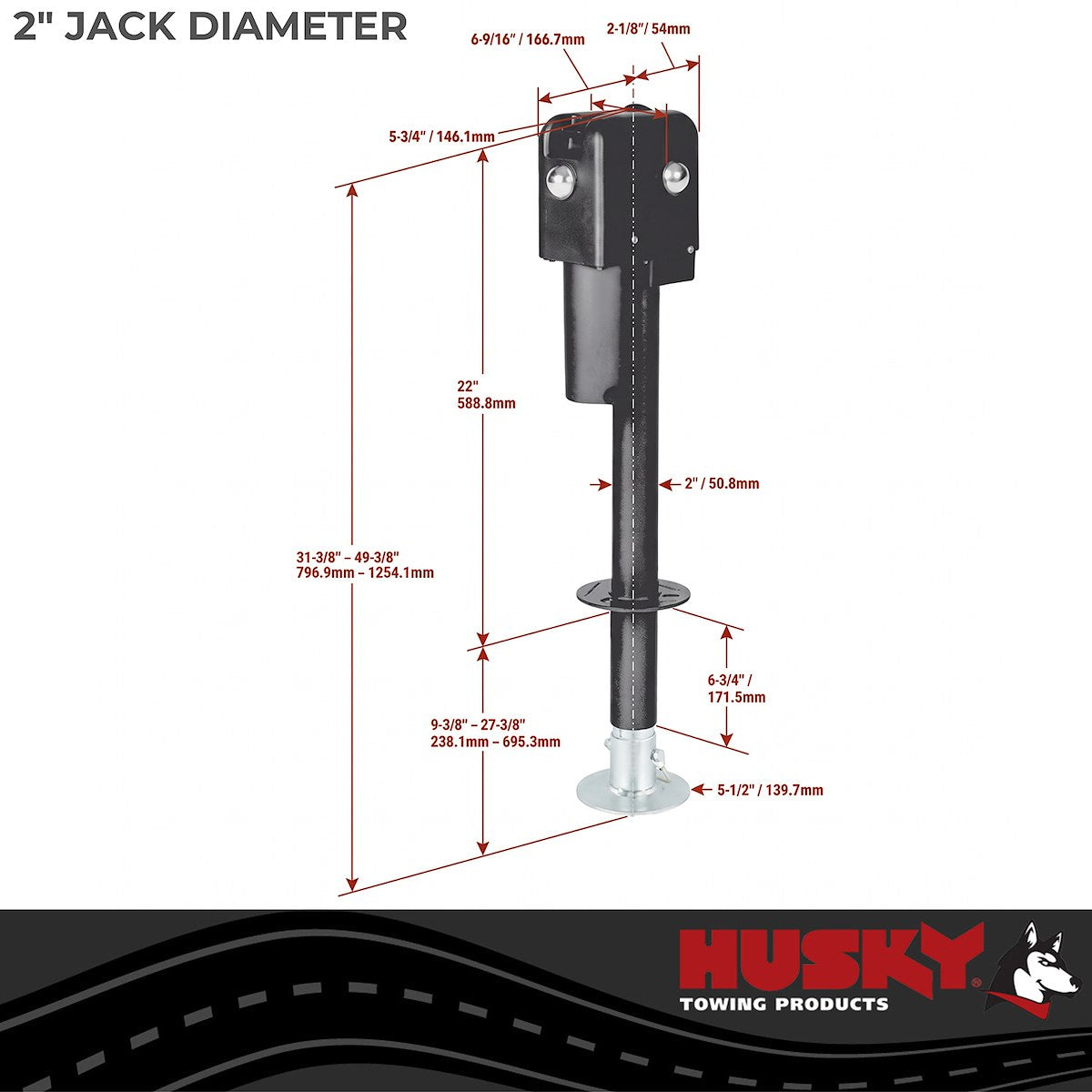

Specifications
- Manufacturer: Husky Towing
- Part number: 81200
- Type: Electric A-frame tongue jack (round ACME screw)

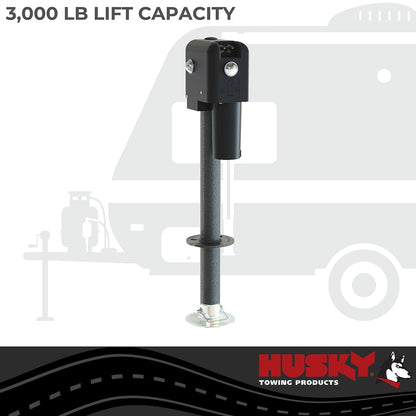

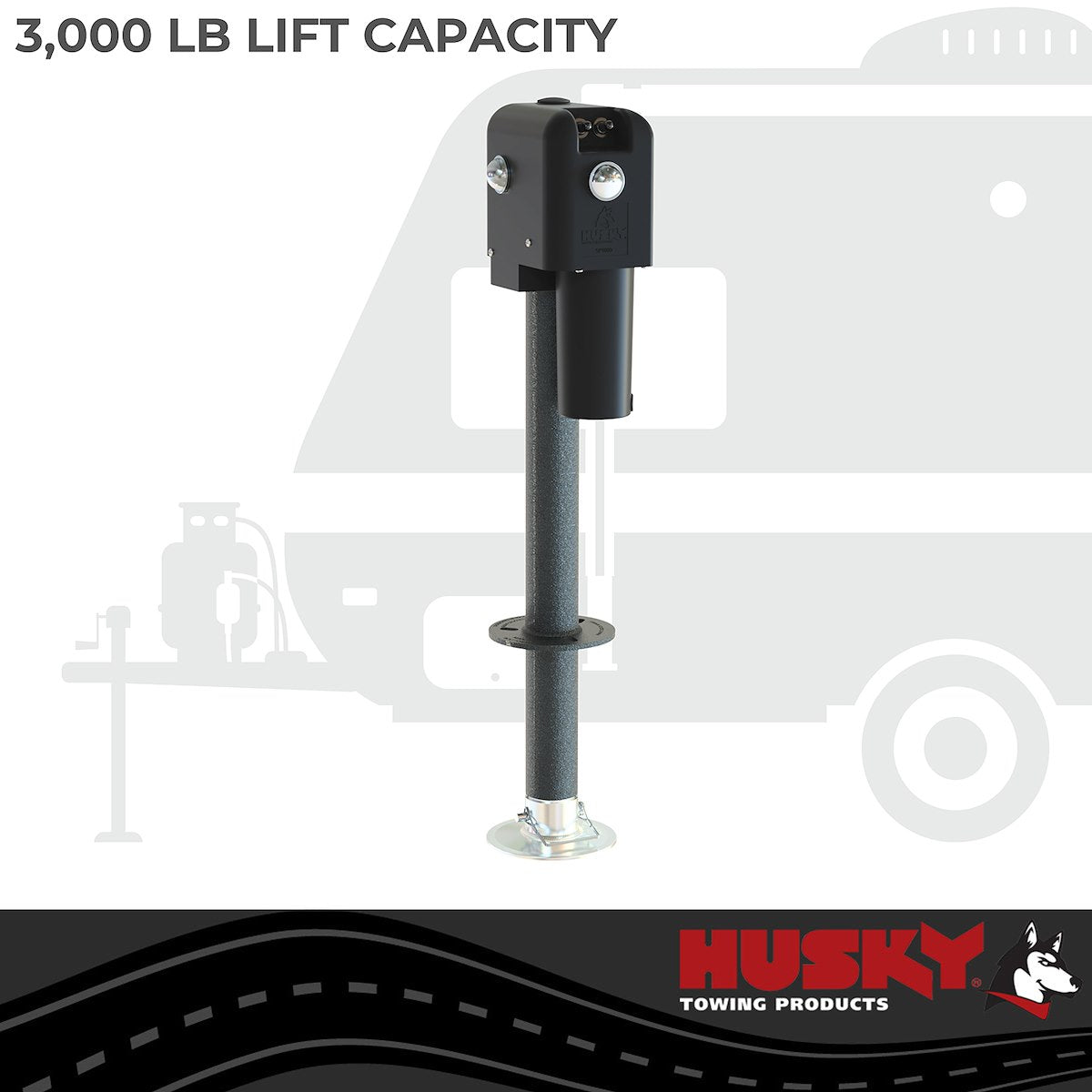

- Capacity: 3,000 lbs
- Lift: 18 inches
- Retracted height: 9 inches
- Extended height: 27 inches
- Jack tube diameter: 2 inch
- Foot pad: 5-1/2 inch, zinc-plated leg
- Voltage: 12V DC
- Current draw: 20 amps at full load
- Travel speed: 72 seconds (per the manufacturer)

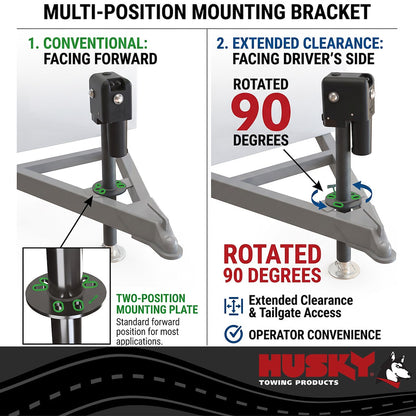

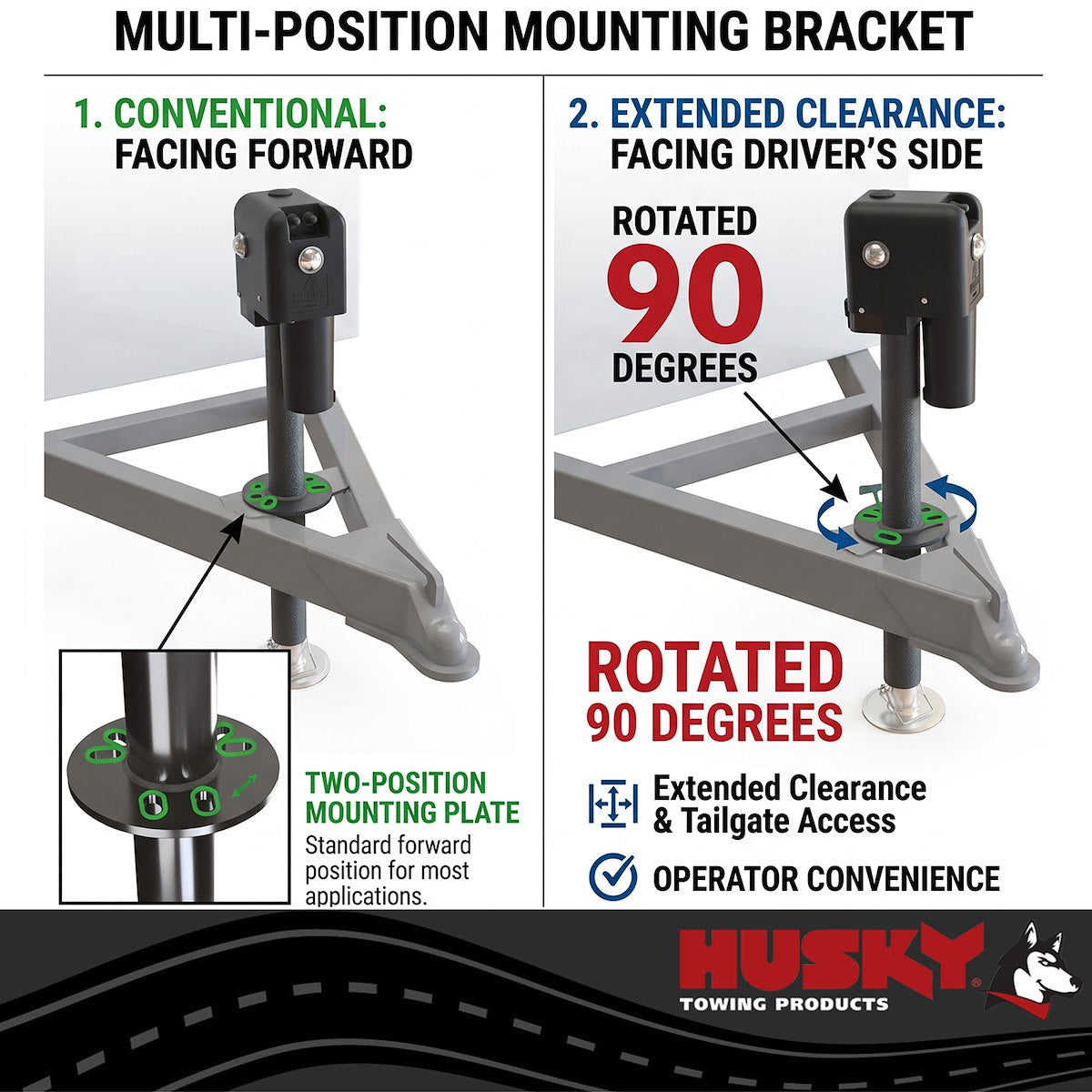

- Mounting: Bolt-on
- Fasteners: Stainless steel
- Finish: Black powder coat, UV-resistant cover
- Estimated install time: About 30 minutes
- Warranty: Husky lists a limited 2-year warranty
Features
- 3 multi-bulb work lights
- Weather-protected switches for jack and lights
- Smart Stop technology to prevent hard stops
- Internal automatic thermal protection and resettable circuit breaker
- Emergency crank handle included
