Husky Weight Distribution Hitches Centerline TS

Combines weight distribution and sway control in a single unit without additional hardware. Hitch ball is factory installed adn tightened to the correct torque specifications. Includes universal frame brackets for easy installation and adjustment. Each kit contains everything necessary to install this hitch - no separate components!

  • The Center Line TS top plate is forged 1035 steel; Forged 1035 produces a much stronger hitch with excellent fatigue properties
  • The trunnions are heat treated, hardened allow steel which ensures exceptional strength and wear properties.
  • Tapered spring bars deliver a superior fit and appearance
  • Universal EZ adjustment frame brackets for easy installation and adjustment
  • Exacting tolerances in spring bar, head and lift brackets. The Center Line TS reacts to trailer sway conditions earlier than competing products and delivers quieter ride.
  • Handle can be used to hook up and remove bars
  • Frame brackets work with 4"-8" tall frames
  • No need for additional hardware
MFG.# TONGUE WEIGHT RANGE HITCH BALL SIZE GROSS TRAILER WEIGHT
32215 400-600 lb 2" Ball Up to 6,000 lb

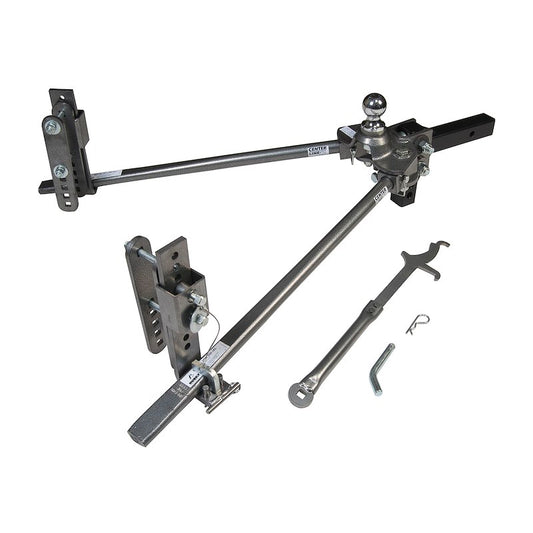

32216 400-600 lb 2-5/16" Ball Up to 6,000 lb
32217 600-800 lb 2-5/16" Ball Up to 8,000 lb

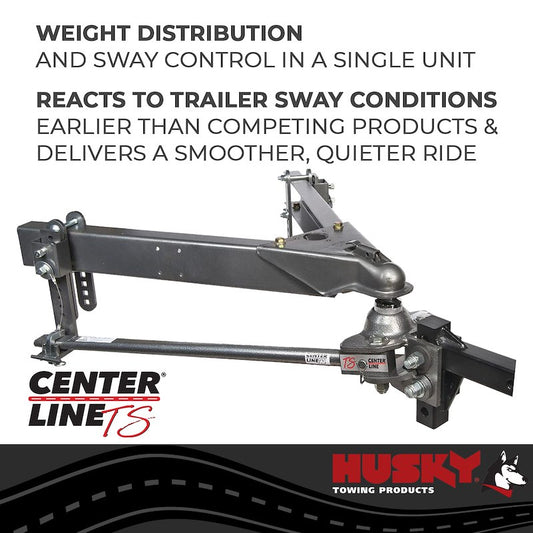

32218 800-1,200 lb 2-5/16" Ball Up to 12,000 lb
33092 800-1,200 lb 2-5/16" Ball w/o Shank* Up to 12,000 lb
33303 1,000-1,400 lb 2-5/16" Ball Up to 14,000 lb

*Alternate shank sizes available for taller vehicles.

Replacement Parts


PART # DESCRIPTION

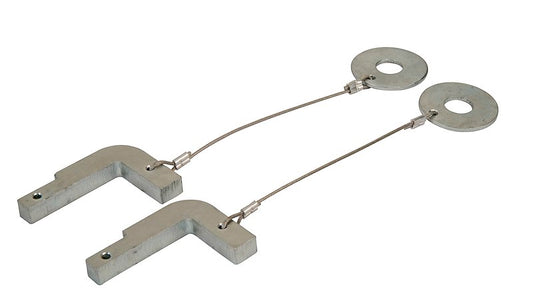

32337 CLTS WD “L” pins with lanyard
32334 CLTS WD hitch replacement lift handle
33120 Replacement mounting bracket and hardware
32335 Spring bar retaining pin 400-1200 kits
33052 Spring bar retaining pin 1400 kits
33853 8,000 lb 2” ball



PART # DESCRIPTION
39386 12,000 lb 2-5/16” ball
30678 14,000 lb 2-5/16” ball
32331 400-600 lb SPRING BAR ONLY (1)
32330 600-800 lb SPRING BAR ONLY (1)
32329 800-1,200 lb SPRING BAR ONLY (1)
33050 1,000-1,400 lb SPRING BAR ONLY (1)
