Product Description

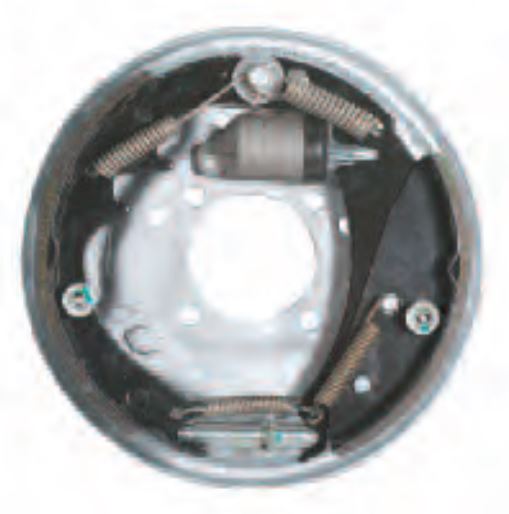

The Demco SB40716M is a complete 10-inch hydraulic drum brake assembly for the left side of a trailer axle rated up to 3,500 lbs. It's a free-backing design: the shoes are built to release when the trailer rolls backward, which minimizes brake drag when backing up a trailer with surge brakes. The assembly is built for wet use, with a hot-dipped galvanized backing plate, stainless steel spring hardware, a plated wheel cylinder and riveted marine brake shoes, making it a good fit for boat trailers.
This listing is for one left-side assembly. Order the matching right-side assembly (SB40715M) to do both ends of an axle.
Compatibility
- Trailer axles rated up to 3,500 lbs with a 4 on 4 inch brake mounting flange
- Hydraulic (surge) trailer brake systems
Check your axle's brake flange bolt pattern, drum size and axle rating before ordering, or contact us with your axle details.
Specifications
- Manufacturer: Demco
- Part number: SB40716M
- Brake type: Hydraulic drum, free-backing
- Size: 10 x 2-1/4 inches
- Position: Left
- Axle rating: 3,500 lbs
- Mounting bolt pattern: 4 on 4 inch
- Backing plate: Hot-dipped galvanized
- Estimated install time: About 30 minutes
- Warranty: Demco lists a limited 1-year warranty
What's Included
- Backing plate
- Brake shoes
- Wheel cylinder
- Actuating lever and adjusting screw
- Spring hardware
