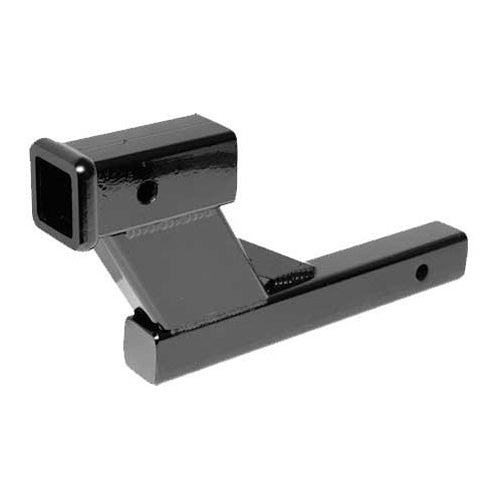

Demco 9523060 6" Drop Raise Receiver

Demco 9523060 6" Drop/Raise Receiver for Victory Series Tow Bars

The Demco 9523060 6-Inch Drop/Raise Receiver is designed for compatible Demco Victory Series tow bars and helps correct tow-bar height when the motorhome receiver and towed vehicle connection points are not properly aligned.

The receiver can be installed in either the drop or rise orientation, providing 6 inches of height adjustment to help bring the tow bar closer to level with the road during flat towing.

Demco designs its drop/raise receivers using Finite Element Analysis (FEA) and states that they are tested to 10,500 lb GVWR and up to 100 lb tongue weight.

Demco 9523060 Specifications

• Part Number: 9523060
• Product: Drop/Raise Receiver
• Application: RV Flat Towing
• Compatibility: Demco Victory Series Tow Bars
• Drop: 6 Inches
• Rise: 6 Inches
• Orientation: Drop or Rise
• Tested GVWR: 10,500 lb
• Maximum Tested Tongue Weight: 100 lb

Features & Benefits

• 6-Inch Drop or Rise: Helps correct larger height differences between the motorhome receiver and towed vehicle connection points.
• Reversible Design: Can be turned up or down depending on whether the towing setup requires additional rise or drop.
• Helps Achieve Proper Tow-Bar Height: Designed to help bring the tow bar closer to level with the road in compatible flat-towing setups.
• Victory Series Compatibility: Listed by Demco for use with Victory Series tow bars.
• FEA-Designed: Demco states its drop/raise receivers are designed using Finite Element Analysis.
• Heavy-Duty Testing: Tested by Demco to 10,500 lb GVWR and up to 100 lb tongue weight.
• Complete Receiver: Demco identifies part 9523060 as the complete 6-inch Drop/Lift Receiver Hitch.

Correct Tow-Bar Height for Flat Towing

Proper tow-bar height is an important part of setting up a flat-towing system. When the motorhome receiver and towed vehicle attachment points are at different heights, a drop/raise receiver can help bring the tow bar closer to parallel with the road.

The Demco 9523060 provides 6 inches of adjustment and can be installed in either the drop or rise position depending on your towing configuration.

Important: Measure the motorhome receiver and towed vehicle connection heights before selecting a drop/raise receiver. Verify compatibility and all applicable ratings for your motorhome, hitch receiver, drop/raise receiver, tow bar, baseplate, and towed vehicle. Never exceed the rating of the lowest-rated component in the complete towing system.

What's Included

• Demco 6-Inch Drop/Raise Receiver

Manufacturer Part Number: 9523060
