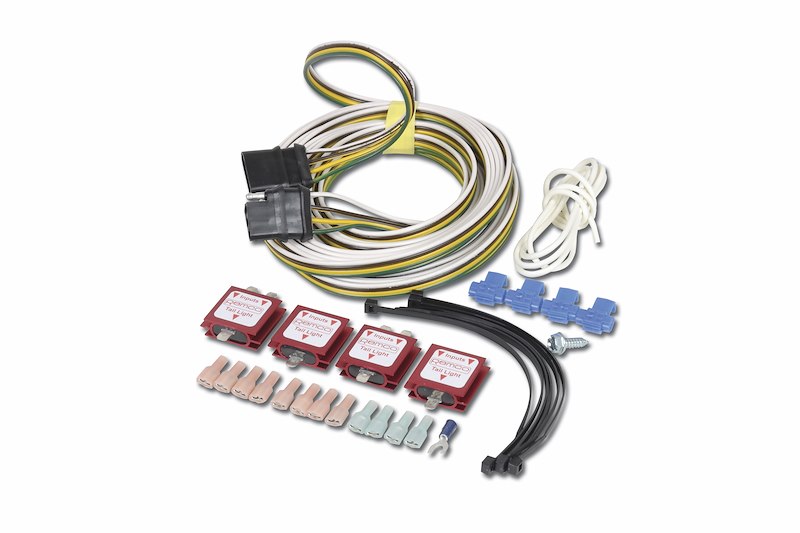

Demco 9523010 Towed Vehicle Taillight Wiring / Diode Kit

Demco 9523010 Towed Vehicle Taillight Wiring / Diode Kit

The Demco 9523010 Towed Vehicle Taillight Wiring / Diode Kit is designed for RV flat-towing applications where the motorhome's lighting signals need to operate the taillights on the towed vehicle.

A properly installed diode wiring system allows the towed vehicle's existing rear lights to provide the required lighting functions while being towed behind a motorhome. The diodes help isolate the electrical systems, allowing signals to travel to the towed vehicle lights while helping prevent electrical feedback into the vehicle's wiring system.

This hardwired solution eliminates the need to attach temporary magnetic towing lights each time the vehicle is connected for flat towing. Once properly installed, the wiring remains with the towed vehicle as part of its flat-towing setup.

Demco 9523010 Wiring Kit Specifications

• Part Number: 9523010
• Product: Towed Vehicle Taillight Wiring / Diode Kit
• Application: RV Flat Towing
• Installation Location: Towed Vehicle
• Wiring Type: Hardwired Diode System
• Purpose: Towed Vehicle Taillight Activation
• Reusable Installation: Yes

Features & Benefits

• Designed for Flat Towing: Provides a hardwired lighting solution for vehicles being flat towed behind a motorhome.
• Uses the Vehicle's Existing Taillights: Allows the towed vehicle's rear lighting system to provide towing light functions instead of relying on temporary external lights.
• Diode-Based Electrical Isolation: Diodes help direct electrical signals while protecting against unwanted electrical feedback between the motorhome and towed vehicle circuits.
• Permanent Towed-Vehicle Installation: Once installed, the system remains in the vehicle for convenient future towing hookups.
• Cleaner Flat-Tow Setup: Eliminates the need to install and remove temporary magnetic towing lights for each trip.
• Works as Part of a Complete Wiring System: Can be paired with the appropriate coiled electrical cable and connectors to establish the electrical connection between the motorhome and towed vehicle.

Built for RV Flat-Towing Lighting

The Demco 9523010 is intended for RV owners who want to integrate their towed vehicle's taillights into the motorhome's towing-light system. It provides the hardwired diode portion of the electrical setup and can be used when building or replacing the lighting system on a flat-towed vehicle.

Important: Vehicle electrical systems vary. Always verify that a diode-style wiring system is appropriate for the specific year, make, model, trim, and lighting configuration of the towed vehicle before installation. Additional wiring, connectors, electrical cables, adapters, or vehicle-specific components may be required to complete the connection between the motorhome and towed vehicle.

What's Included

• Demco Towed Vehicle Taillight Wiring / Diode Kit

Manufacturer Part Number: 9523010
