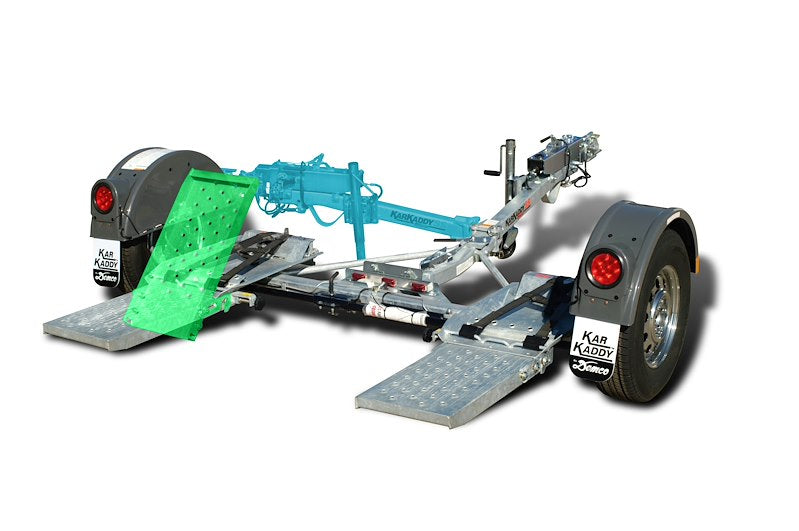

Demco 9713045 Kar Kaddy SS Tow Dolly – Folding Galvanized Tow Dolly with Surge Brakes

Demco 9713045 Kar Kaddy SS Tow Dolly

The Demco Kar Kaddy SS Tow Dolly 9713045 combines a space-saving folding design with a galvanized finish, hydraulic surge disc brakes, steerable axle, and folding loading ramps for convenient vehicle towing behind your motorhome.

Designed for RV owners who want a tow dolly that is easy to use and easier to store, the Kar Kaddy SS features a hinged tongue and folding ramps that reduce its overall length from approximately 133 inches when fully extended to just 67 inches when folded.

Specifications

• Manufacturer: Demco
• Model: Kar Kaddy SS
• Manufacturer Part Number: 9713045
• RV Towing Pros Part Number: 14-0855
• Maximum Towed Vehicle Weight: 4,800 lbs.
• Axle Capacity: 3,500 lbs.
• Towed Vehicle Tread Width: 42" minimum to 76" maximum
• Fully Extended Length: 133"
• Folded Length: 67"
• Finish: Galvanized
• Brakes: Hydraulic Surge Disc Brakes
• Tires: Radial
• Coupler: EZ Latch Coupler

Features & Benefits

• Folding Design: The hinged tongue and folding ramps dramatically reduce the amount of storage space required when the tow dolly is not in use.
• Galvanized Finish: Provides long-lasting corrosion resistance for years of RV towing use.
• Auto Steer: A steerable axle allows the dolly to track through tighter turns.
• Hydraulic Surge Disc Brakes: Provides integrated braking without requiring an electronic brake controller.
• Folding Loading Ramps: Ramps fold up after loading to create a more compact towing configuration.
• Low Tongue Weight: Designed for less than 100 lbs. of tongue weight when loaded.
• Tilt-Bed Frame: Provides fast, convenient vehicle loading with a positive-locking mechanism built into the tilt-bed design.
• Radial Tires: Equipped with radial tires for dependable highway towing.
• Dual Safety Chains: Provides an additional level of towing security.
• EZ Latch Coupler: Simplifies connecting the tow dolly to the motorhome hitch ball.
• Custom Chrome Wheels: Gives the Kar Kaddy SS a distinctive finished appearance.
• Made in the USA: Manufactured by Demco in the United States.

Built for RV Tow Dolly Applications

The Demco Kar Kaddy SS is designed for towing compatible vehicles behind a motorhome with the vehicle's front wheels secured on the tow dolly. Its 42-inch minimum to 76-inch maximum tread-width range accommodates a broad range of compatible passenger vehicles.

The steerable axle helps the dolly follow the motorhome through turns, while the integrated hydraulic surge disc brakes provide proportional braking action as the towing vehicle slows.

Compact Storage Between Trips

One of the defining advantages of the Kar Kaddy SS is its folding design. When fully extended, the dolly measures approximately 133 inches long. The hinged tongue and folding ramps allow it to collapse to approximately 67 inches long, helping reduce the storage space required at home, in an RV park, or in a garage.

Important: Always verify the towed vehicle's curb weight, front-axle weight, tread width, tire size, ground clearance, and manufacturer-approved towing procedures before using a tow dolly. Do not exceed the Kar Kaddy SS weight or axle ratings. Vehicle suitability can vary by year, make, model, drivetrain, and configuration.

What's Included

• Demco Kar Kaddy SS Tow Dolly
• Hydraulic Surge Disc Brake System
• Folding Loading Ramps
• Radial Tires and Wheels
• Safety Chains
• Vehicle Tie-Down Equipment
• EZ Latch Coupler

Manufacturer Part Number: 9713045
