Demco 9599019 Air Force One Braking System with Wireless Coachlink

Demco 9599019 Air Force One Braking System with Wireless Coachlink

The Demco 9599019 Air Force One (AFO) Supplemental Braking System with Wireless Coachlink combines Demco's installed proportional braking system for air-brake motorhomes with wireless in-cab notification that lets the motorhome driver know when the towed vehicle's brakes are being applied.

Air Force One uses a pilot signal from the motorhome's air-brake system to provide direct proportional braking in the towed vehicle. Once properly installed, the system remains in place and is ready for flat towing without installing and removing a portable braking unit for each trip.

Demco 9599019 Specifications

• Part Number: 9599019
• System: Air Force One (AFO) with Wireless Coachlink
• Product Type: Supplemental Braking System
• Application: RV Flat Towing
• Motorhome Brake Type: Air Brakes
• Braking Type: Direct Proportional Braking
• Installation Type: Installed System
• Coach Notification: Wireless Coachlink
• Breakaway System: Integrated
• Warranty: 5 Years

Features & Benefits

• Direct Proportional Braking: Uses a pilot signal from the coach's air-brake system to proportionally apply the brakes in the towed vehicle.
• Designed for Air-Brake Motorhomes: Air Force One is engineered specifically for coaches equipped with air brakes.
• Wireless Coach Notification: Wireless Coachlink provides feedback inside the motorhome when the towed vehicle's braking system is operating.
• Visual Brake Confirmation: Provides a positive "brakes on" light for visual feedback.
• Audible Notification: Coachlink also provides an audible indication of towed-vehicle braking operation.
• Total Coach Protection: Air Force One separates and protects the motorhome's air supply and is designed to seal the coach air supply in the event of a towing-system separation.
• Integrated Breakaway: Includes an integrated breakaway system for the towed vehicle.
• Power-Brake Assist: Uses coach air to create vacuum for the towed vehicle's power-brake system without requiring an electronic vacuum pump.
• No Pulleys, Catches or Springs: Uses Demco's compact actuator to apply the towed vehicle's brake pedal.
• 5-Year Warranty: Backed by Demco's five-year braking-system warranty.

Air Force One Braking with Wireless Coach Notification

The Demco 9599019 combines Air Force One's proportional braking technology with Wireless Coachlink for additional feedback at the driver's seat. The Air Force One system responds to the motorhome's air-brake input, while Coachlink communicates braking-system operation from the towed vehicle to the motorhome.

Wireless Coachlink plugs into the coach power port and provides both visual and audible feedback when the towed vehicle's brakes are applied. This gives the motorhome driver confirmation of braking-system operation without requiring a wired notification connection between the vehicles.

Total Coach Protection

Air Force One incorporates Demco's Total Coach Protection system to separate and protect the motorhome's air supply. If the towed vehicle separates from the motorhome, the system is designed to protect the coach air supply while activating the towed vehicle's breakaway braking system.

Important: Demco 9599019 is designed for compatible motorhomes equipped with air brakes. Installation involves the motorhome air-brake system and the towed vehicle braking system. Follow current Demco installation instructions and all applicable motorhome, chassis, towed-vehicle, and towing-system requirements. Installation should be performed by a qualified installer when appropriate.

What's Included

• Demco Air Force One Supplemental Braking System Components

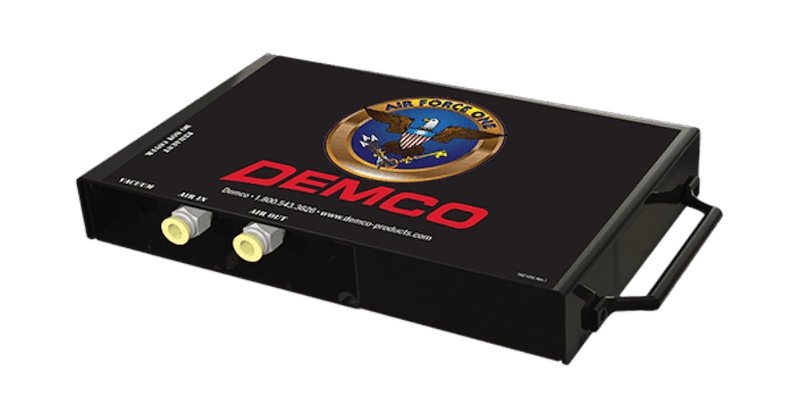

• Air Force One Towed-Vehicle Operating Unit
• Brake Actuator Components
• Coach Air Assembly
• Wireless Coachlink System
• Required Installation Components

Manufacturer Part Number: 9599019
