Demco 9599007 Air Force One Supplemental Braking System

Demco 9599007 Air Force One Supplemental Braking System

The Demco 9599007 Air Force One (AFO) Supplemental Braking System is an installed braking system engineered for motorhomes equipped with air brakes. Designed for flat-towing applications, Air Force One uses the coach's air-brake system to provide direct proportional braking to the towed vehicle.

Once properly installed, Air Force One is designed for convenient towing with minimal setup. The operating unit mounts under the hood of the towed vehicle, while a compact actuator operates the towed vehicle's brake pedal.

Demco 9599007 Specifications

• Part Number: 9599007
• System: Air Force One (AFO)
• Product Type: Supplemental Braking System
• Application: RV Flat Towing
• Motorhome Brake Type: Air Brakes
• Braking Type: Direct Proportional Braking
• Installation Type: Installed System
• Breakaway System: Integrated
• Warranty: 5 Years

Features & Benefits

• Direct Proportional Braking: Uses a pilot signal from the motorhome's air-brake system to proportionally apply the brakes in the towed vehicle.
• Designed for Air-Brake Motorhomes: Engineered specifically for coaches equipped with air brakes.
• Total Coach Protection: Demco's system separates and protects the motorhome's air supply and is designed to seal the coach air supply if the towed vehicle separates.
• Integrated Breakaway: Includes an integrated breakaway system for added towing safety.
• Uses Towed-Vehicle Power Brakes: The system creates vacuum for the towed vehicle's power-brake assist without requiring an electronic vacuum pump.
• No Pulleys, Catches or Springs: The compact brake actuator applies force linearly to the towed vehicle's brake pedal.
• Installed Design: Once properly installed, the system remains with the vehicles and is ready for towing without installing and removing a portable brake unit for each trip.
• 5-Year Warranty: Backed by Demco's five-year braking-system warranty.

Proportional Braking for Air-Brake Motorhomes

Air Force One uses the motorhome's air-brake signal to control braking in the towed vehicle. This allows the towed vehicle's braking effort to follow the coach braking input rather than relying on an adjustable inertia-based system.

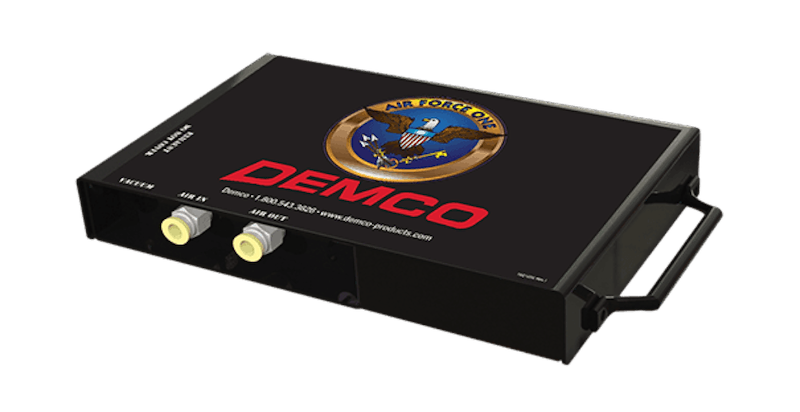

The system consists of three primary components: the Operating Unit, Actuator, and Coach Air Assembly. The operating unit mounts under the hood of the towed vehicle and provides vacuum for power-brake assist as well as reserve air for the breakaway circuit. The actuator mounts at the towed vehicle's brake pedal, while the Coach Air Assembly integrates with the motorhome's air-brake system.

Total Coach Protection

Demco's Total Coach Protection system is designed to isolate and protect the motorhome's air supply. In the event of a separation between the motorhome and towed vehicle, the system is designed to seal the coach air supply while activating the towed vehicle's breakaway braking system.

Important: Demco 9599007 is intended for compatible motorhomes equipped with air brakes. Installation involves both the motorhome air-brake system and the towed vehicle braking system. Follow the current Demco installation instructions and all applicable motorhome, chassis, vehicle, baseplate, tow-bar, and braking-system requirements. Professional installation should be used when the installer is not fully qualified to perform the installation.

What's Included

• Air Force One Towed-Vehicle Operating Unit
• Brake Actuator Components
• Coach Air Assembly
• Required Air Force One Installation Components

Manufacturer Part Number: 9599007
