Demco 6215 Stay-IN-Play DUO Replacement Air Cylinder Kit

Demco 6215 Stay-IN-Play DUO Replacement Air Cylinder Kit

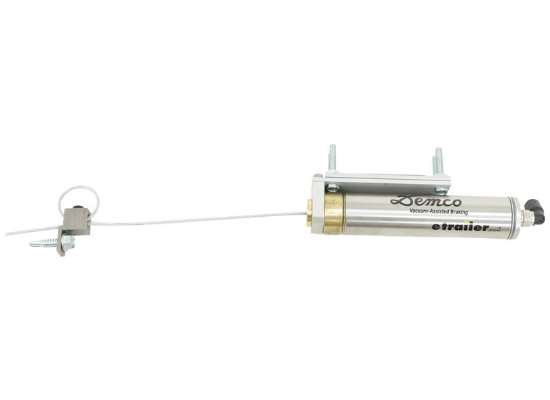

The Demco 6215 Stay-IN-Play DUO Air Cylinder Kit is a genuine replacement actuator kit for compatible Demco Stay-IN-Play DUO supplemental braking systems.

The air cylinder is the compact actuator used by the Stay-IN-Play DUO system to apply the towed vehicle's brake pedal during supplemental braking. The 6215 kit includes the replacement air cylinder along with the cable anchor, reinforcement plate, and mounting hardware specified by Demco.

Demco 6215 Specifications

• Part Number: 6215
• Product: Stay-IN-Play DUO Air Cylinder Kit
• Product Type: Supplemental Braking System Replacement Actuator Kit
• Application: RV Flat Towing
• Braking System Compatibility: Demco Stay-IN-Play DUO
• Component Type: Air Cylinder / Brake Actuator
• Cable Anchor Included: Yes
• Reinforcement Plate Included: Yes
• Mounting Hardware Included: Yes

Features & Benefits

• Replacement DUO Air Cylinder: Replaces the air-cylinder actuator used in compatible Demco Stay-IN-Play DUO supplemental braking systems.
• Brake Pedal Actuation: The air cylinder applies the towed vehicle's brake pedal when the DUO supplemental braking system activates.
• Cable Anchor Included: Includes the cable anchor used for the actuator installation.
• Reinforcement Plate Included: Supplied with the replacement plate used with the cable-anchor installation.
• Installation Hardware Included: Includes three #14 x 1-inch drill/tap screws and four 10/32 x 2-1/2-inch screws.
• Wide Brake Pedal Hardware: The included 2-1/2-inch screws are specified by Demco for use with wider brake-pedal arms.
• Genuine Demco Replacement Kit: Manufacturer replacement components for compatible Stay-IN-Play DUO installations.

Replacement Actuator for Stay-IN-Play DUO

The Stay-IN-Play DUO uses a compact air cylinder to physically operate the brake pedal in the towed vehicle. The DUO system combines air pressure and vacuum-assisted braking and requires both coach brake activation and sufficient deceleration before applying the towed vehicle's brakes.

The Demco 6215 kit provides the replacement air-cylinder assembly and associated mounting components needed when servicing the actuator portion of a compatible Stay-IN-Play DUO installation.

Important: Demco 6215 is a replacement component and not a complete Stay-IN-Play DUO supplemental braking system. Verify that part 6215 is the correct replacement for your existing system before ordering. Installation and adjustment should be completed according to current Demco instructions.

What's Included

• 1 – Stay-IN-Play DUO Air Cylinder Kit
• 1 – Cable Anchor
• 3 – #14 x 1-Inch Hex-Head Washer Drill/Tap Screws
• 1 – Cable Anchor Reinforcement Plate
• 4 – 10/32 x 2-1/2-Inch Screws for Wider Brake-Pedal Arms

Manufacturer Part Number: 6215
