Demco 6210 Replacement Air Force One Air Cylinder Kit

Demco 6210 Replacement Air Force One Air Cylinder Kit

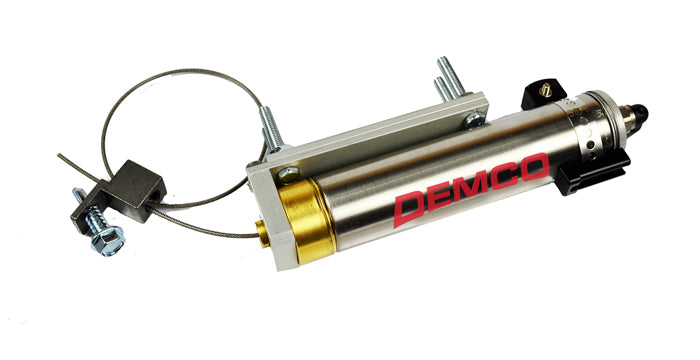

The Demco 6210 Air Force One Air Cylinder Kit is a genuine replacement actuator kit for compatible Demco Air Force One (AFO) supplemental braking systems.

The Air Force One air cylinder is part of the actuator assembly responsible for applying the towed vehicle's brake pedal during supplemental braking. The 6210 kit provides the replacement air cylinder along with the cable anchor, reinforcement plate, reed switch, and mounting hardware specified by Demco.

Demco 6210 Specifications

• Part Number: 6210
• Product: Air Force One Air Cylinder Kit
• Product Type: Supplemental Braking System Replacement Actuator Kit
• Application: RV Flat Towing
• Braking System Compatibility: Demco Air Force One
• Component Type: Air Cylinder / Brake Actuator
• Reed Switch Included: Yes
• Cable Anchor Included: Yes
• Reinforcement Plate Included: Yes

Features & Benefits

• Replacement AFO Air Cylinder: Replaces the air cylinder used in compatible Demco Air Force One supplemental braking systems.
• Brake Pedal Actuation: The Air Force One actuator applies the towed vehicle's brake pedal as part of the supplemental braking system.
• Reed Switch Included: Includes the reed switch and mounting strap specified by Demco for the air cylinder assembly.
• Cable Anchor Included: Supplied with the cable anchor used in the actuator installation.
• Reinforcement Plate Included: Includes the reinforcement plate for the cable anchor installation.
• Wide Brake Pedal Hardware: Includes four 10/32 x 2-1/2-inch screws specified by Demco for use with wider brake pedal arms.
• Genuine Demco Replacement Kit: Manufacturer replacement components for compatible Air Force One installations.

Replacement Actuator for Air Force One

The Demco Air Force One system uses a compact air-powered actuator connected to the towed vehicle's brake pedal. During braking, the actuator provides the mechanical movement needed to apply the towed vehicle's brakes as part of the Air Force One proportional supplemental braking system.

The Demco 6210 kit provides the primary air cylinder along with several associated installation components, making it suitable when servicing or replacing the actuator assembly in a compatible Air Force One installation.

Important: The Demco 6210 is a replacement Air Force One component and not a complete supplemental braking system. Verify that part 6210 is correct for your existing Air Force One system before ordering. Installation and adjustment of supplemental braking components should follow current Demco instructions.

What's Included

• 1 – Air Force One Air Cylinder
• 1 – Cable Anchor
• 3 – #14 x 1-Inch Hex-Head Washer Drill/Tap Screws
• 1 – Cable Anchor Reinforcement Plate
• 1 – Reed Switch with Mounting Strap
• 4 – 10/32 x 2-1/2-Inch Screws for Wider Brake Pedal Arms

Manufacturer Part Number: 6210
